Polaris RZR 800 HP4 Valve Train Kit

Polaris RZR 800 HP4 Valve Train Kit

699.00
With today's modern ATV 4-Stroke engines, making additional Horsepower is no easy task...This makes it critical that Engine Tuners have the Experience, Knowledge and Equipment to do the job properly. Duncan Racing International's HP4 Valve Train Kit is designed to give you the utmost in performance and reliability by using the most advanced equipment and techniques in the industry. All porting work is performed by our master technician and valve seat cutting is done on our in-house SERDI valve seat cutting machine.

MODEL: 2008-10 Polaris RZR 800

DRI HP4 PURCHASE OPTIONS
DR-PR8K $699.00

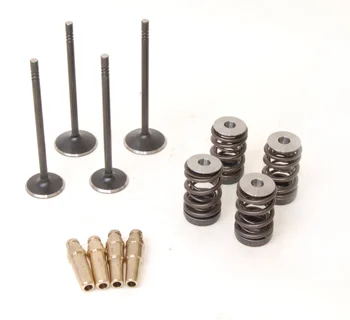

DRI Valve Train HP4 Kit Camshaft (see cam profile options below), HD Valve Springs w/Titanium Retainers, Shortened Valve Guides, Big Valve Kit (+1.0mm S/S Intake and Exhaust Valves) ONLY
* Porting / Serdi Valve seat cut not included in this kit.
**Kit must be installed by a trained professional with proper equipment.
** Customer must also send in stock cam core. (or pay core charge)

DR-802KP $1399.00 DRI Valve Train HP4 Kit Camshaft (see cam profile options below), HD Valve Springs w/Titanium Retainers, Shortened Valve Guides, Big Valve Kit (+1.0mm S/S Intake and Exhaust Valves), Cylinder Head Porting , SERDI Valve Seat Machining and Professional Head Assembly .
*Customer must send in head for modification or purchase new head from DRI
** Customer must also send in stock cam core.
(or pay core charge)
CAMSHAFT OPTIONS
CORES REQUIRED: Head Assy, Camshaft.
�NEW CORE PRICING: Cylinder $368.00, Head $469.00, Cams $240.00
�INSTALLATION: Kit must be assembled by a trained professional
*LIFTERS SHOULD BE UPGRADED WHEN INSTALLING HP CAMSHAFTS
�DELIVERY TIME: 2-4 weeks

S-1 Grind Camshaft
Part #PR8-Stage 1
Specifications: All Around Power Gain Cam Lift: .435�/.435", Duration 272�/272�
Application: Dune Riding/ Trail Riding/Woods/Cross Country

S-2 Grind Camshaft
Part #: PR8-Stage II
Specifications: Racing/Improved Acceleration Cam Lift: .465/.465", Duration 298�/298�
Application: Racing
Notes: 1,3,4,

�NOTES:
1. HD Valve Springs are required for this camshaft.
2. Shortened Bronze Guides are required for this camshaft.
3. New or modified piston required for this camshaft. Additional valve pocket relief in piston is required due to increased camshaft lift.
4. Customer must send in stock camshaft core. If no core is supplied, customer must pay core charge of $220.00
5. Rocker arm clearance (cam lobe to rocker) must be checked.
6.Rocker arms (both IN and EX) must be modified. Due to increased cam lobe size; material must be removed from rocker arms to allow for proper cam lobe to rocker clearance. Modification charge $75
7. Head casting must be modified to allow for camshaft to be installed in head.
(DR performs modification in KP kit)

HP4 KIT FEATURES
In-House Cylinder Head Porting* (by Master Technician)
*Valve guides are removed during porting process to allow for greater port reconfiguration

Port Design Modifications Aided by In-House Flow Bench Testing and Computerized Port Mapping Software

Precision Valve Seat Machining and Reconfiguration*
*DRI uses in-house SERDI Valve Seat Cutting Machine used by F1, CART and NASCAR.

Big Valve Kits (Stainless Steel or Titanium)

Heavy Duty Valve Spring Kits*
*With Titanium Retainers, Mandatory with High Performance Valve Trains

AMPCO 45 Shortened Valve Guides

Camshafts of the Highest Quality Made in the USA

All Head Work Done In-House for Reasonable Turnaround Delivery Time.

Customers Can Send In Their Head for Modification or DRI Carries New OEM Heads.

HORSEPOWER
HP4 Kits with porting offer gains up to 5 HP*.
*Results vary depending on camshaft profile and piston compression.

PISTON OPTIONS< br> Forged Piston Kits STD 10.75-1 $375.00
Forged Piston Kits STD 12-1 $375.00
Forged Big Bore Piston Kit 820cc 10.75-1 $399.00
Forged Big Bore Piston Kit 820cc 12-1 $399.00
Big Bore Headgasket $49.95
NOTE 1: Big Bore kit requires cylinder modification-Strip-Bore-Replate add $495
NOTE 2: Customer must send in stock cylinder for modification or pay core charge $368

PIPE and IGNITION
For maximum performance, it is highly recommended to use a high quality performance exhaust system, upgraded aftermarket ECU and high flow air intake system with all HP4 Kits.

IMPORTANT NOTE When installing a high performance camshaft it is the responsibility of the engine assembler to check and confirm that the piston to valve clearance is adequate. Minimum clearance is .060" from valve to piston at peak lift. Tolerances can and will vary from engine to engine. There is not substitute for checking that these tolerances are correct. This is especially critical when mixing camshaft and pistons from different engine builders. One of the correct and easiest ways of checking this is by using the "claying the piston dome" method. Call DRI or consult a professional technician.
