ELKA STAGE 5 FRONT AND REAR Shocks

ELKA STAGE 5 FRONT AND REAR Shocks

0.00
*Due to the custom nature of these products- they are not available online.
Please contact DRI directly 619.258.6306 for availability, pricing and details.

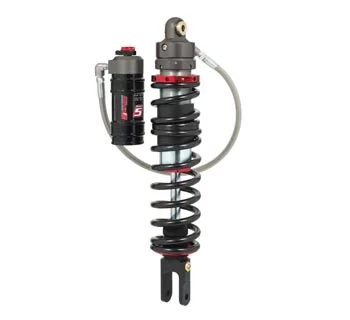

ELKA STAGE 5 FRONT SHOCKS Part# ELK-F-S5 $1,795.00

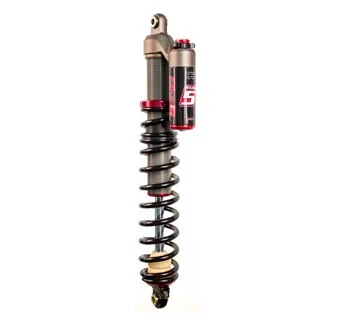

ELKA STAGE 5 FRONT SHOCK Part# ELK-R-S5 $1,295.00

Honda TRX450R �04-�05 DUAL LINKAGE PART# ELK-LK-0168 $399.00
Honda TRX450R �06-�16 DUAL LINKAGE PART# ELK-LK-0415 $399.00

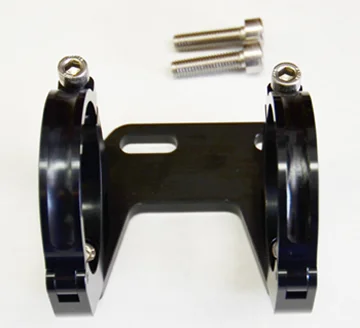

REAR RESERVOIR MOUNT PART# ELK-BK-1002 $150.00

PRODUCT OVERVIEW

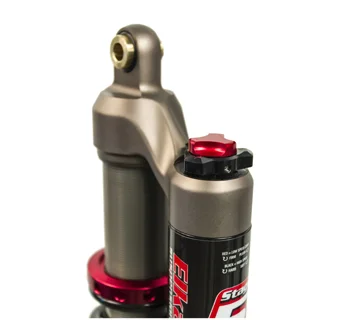

The Stage 5 ATV shocks are the latest evolution of our high-performance racing platform. It is designed around 3 key performance factors: high hydraulic flow, lightweight components and low-friction internal and moving parts. The massive oil displacement of our new High-Flow internals allow a much more precise tuning and smoother damping action than anything else currently available for ATVs. Riders can get better bump absorption, greater comfort and will reduce their lap times significantly.

There is no need to explain all the obvious benefits from reducing the overall weight of your vehicle. By using lightweight components, such as our new redesigned springs, the Stage 5 shocks not only helps reduce overall weight but they can also be more responsive because there is less mass to move (less inertia). The Stage 5�s low friction internals dramatically reduce the stiction, the initial stickiness caused by the friction of internal moving parts against the seals. All those features combined make the Stage 5 the most comfortable and best performing racing shocks on the market today.

INTENDED USE
� Highly adjustable high-performance product
� Designed for racing applications and aggressive riding

MODEL-SPECIFIC TECHNICAL FEATURES
High-flow hydraulic circuits and regulations
Ultra-Lightweight Design
High-Flow Dual Compression Regulation
New Low-Friction Internals & Parts

ADJUSTMENTS
Threaded Spring Preload
High-speed Compression
Low-Speed Compression
Rebound

ELKA�S UNIQUE BENEFITS
� Shocks are vehicle-specific
� Tuning is optimized for intended riding style
� Spring setup according to rider�s weight
� After-sales support directly from the manufacturer

ADVANTAGES
� Race-ready performance and maximum traction in all conditions
� Wide range of highly effective and precise adjustments
� Ultra-lightweight design, all components are optimized for weight savings

STANDARD TECHNICAL FEATURES
� 36mm or 46mm inside diameter hard anodized aluminum body with integrated PTFE coating mated to low-friction internal components
� Sturdy 16mm induction hardened shafts
� Multi-seal, low-friction seal head design that prevents debris and water infiltration, therefore extending the shock life in harsh conditions
� Proprietary oil blend with ultra-low friction light viscosity grade which is ultra-resistant to high operating temperatures
� High-pressure nitrogen valve core design rated at over 800 psi to prevent nitrogen leaks from peak pressure generated upon major hits
