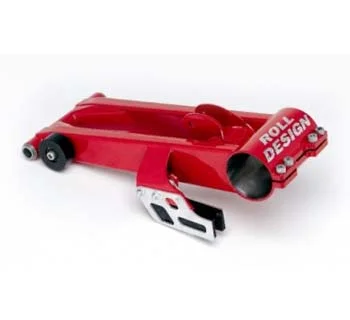

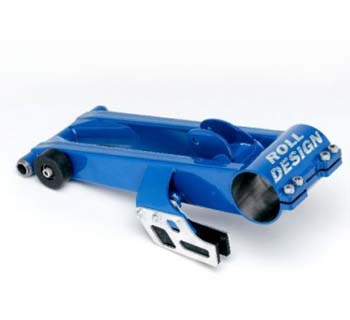

Roll Design Swingarms Hon TRX 250R

Roll Design Swingarms Hon TRX 250R

0.00
CALL FOR PRICE AND AVAILABILITY

Models: Honda TRX 250R 88-89
*Will fit 86-87 models if frame is modified for additional rear motor mount. And other OEM parts are purchased to fit swingarm.

Length:Available in 18.0" length.
Stock 88-89 250R length is 18 1/4"
86-87 250R Length is 19 1/2"

Swingarm uses stock linkage and will work with any model shock that interchanges with stock design

Roll Design is the Pioneer (over 15 years) in ATV Suspension. Do not be mislead by fakes and copies. Roll Design has more R & D and field testing in their products than ALL other companies combined

Roll Design Swingarm Features
Optional:Skidptate or Chain Slider mount. If chain slider is desired it must be purchased at additional cost ($95.00)

Powder coated finish:Standard colors-Red, Grey, Blue, Black
Some Candy colors are available at an additional cost.
Chrome plating available at additional cost

Rear Bearing Carrier: Uses stock OEM or equivalent

Precision honed rear carrier housing for proper bearing carrier fit

Formed 4130 Chromoly main rails. Tapered configuration for Maximum torsion and beam strength

Low drag long wearing chain roller

Supplied with front pivot needle bearing, rear carrier pinch bolts and shock bolt

Certified TIG welded joints to ensure maximum strength

Gull Wing(bent) design availably for various models, offers lighter weight, improved airbox clearance, improved rear caliper clearance

All Roll Design Swingarms allow for more travel. Travel will vary depending on shock design, tire size(ground clearance)



Formed 4130 Chromoly main rails. Tapered configuration for Maximum torsion and beam strength
Call us for Availability!
