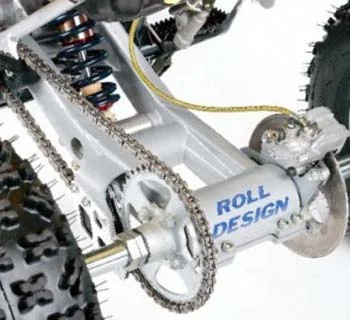

Roll Design Suz LTZ 400-Kaw KFX 400 Swingarm

Roll Design Suz LTZ 400-Kaw KFX 400 Swingarm

0.00
CALL FOR PRICE AND AVAILABILITY

Models: Suzuki LTZ 400 & Kawasaki KFX 400 (all years)

Swing arm is Round Housing design, new round housing carrier must be purchased at additional cost

Length:
Available in 18.5 length
Available in 19.5 length

Stock Swingarm length is 18.5

Swingarm uses stock linkage and will work with any model shock that interchanges with stock design

Swingarm will work best with ELKA Suspension linkage and Elka rear shock. This combination can give the LTZ almost 1.5 inches additional travel.
Linkage also lowers ride height, and gives suspension a more linear rear motion ratio

Roll Design is the Pioneer(over 15 years) in ATV Suspension. Do not be mislead by fakes and copies. Roll Design has more R & D and field testing in their products than ALL other companies combined

Roll Design Swingarm Features
Optional:Skidptate or Chain Slider mount. If chain slider is desired it must be purchased at additional cost ($95.00)

Powder coated finish:Standard colors-Red, Grey, Blue, Black
Some Candy colors are available at an additional cost.
Chrome plating available at additional cost

Rear Bearing Carrier: Round Housing design. Special carrier must be purchased at additional cost.
*Rear brake line may require replacement due to rear caliper relocation

Precision honed rear carrier housing for proper bearing carrier fit

Formed 4130 Chromoly main rails. Tapered configuration for Maximum torsion and beam strength

Low drag long wearing chain roller

Supplied with front pivot needle bearing, rear carrier pinch bolts and shock bolt

Certified TIG welded joints to ensure maximum strength

Gull Wing(bent) design availably for various models, offers lighter weight, improved airbox clearance, improved rear caliper clearance

All Roll Design Swingarms allow for more travel. Travel will vary depending on shock design, tire size(ground clearance)








Round Housing design. Formed 4130 Chromoly main rails. Tapered configuration for Maximum torsion and beam strength
