MOTO GEARS HONDA ATC/TRX 250R TAMNSMISSION GEARS

IN STOCK - CALL TO ORDER # 619-258-6306

Transmission Gears are not sold on the website (DR Webstore)
Call DR to order # 619-258-6306

Moto Gears has brought transmission gear technology to another level.
Their commitment to manufacturing the highest quality gears ever used in these model machines is unprecedented.
MG Gears are proven to deliver smooth, consistent gear engagement and long service life — even under the demanding conditions of aggressive off-road or racing use.

PRODUCT HIGHLIGHTS:
Moto Gear are designed and manufactured in-house. Moto Gears principals have over 14 years of experience in gear design and manufacturing, including materials and heat-treatment processes, and almost 20 years of experience in machining.

The gears are manufactured from 18CrNiMo7-6 which is comparable to SAE/AISI 9310 high strength chromium-nickel-molybdenum case hardening steel, commonly used for highly loaded gears, aerospace applications, and high-performance transmission components.

A metallurgical analysis is performed for each heat treatment batch, including verification of the effective case hardening depth. The final values can vary depending on the gear module, tooth geometry, and component shape.

These gears are not stock oem knock-offs. MotoGears perform their own engineering verification, including gear safety calculations such as pitting resistance, tooth bending strength, material compatibility, and load analysis.

Designed to work with OEM gears. What doe this mean?
You do not need to purchase a complete transmission assembly if it is not needed.
For Example: If your transmission is in good working order except for a 3rd gear M/S and 4th Gear C/S.  You need only purchase 3rd gear M/S and 4th Gear C/S.

NOTE: It is mandatory that any existing used OEM gears fitted in the transmission with new MG Gears MUST BE IN GOOD CONDITION.
Gears with rounded engagement dogs, chipped teeth etc are UNACCEPTABLE.
A trained professional should inspect and assemble your gear stacks.

MG Gears will work with OEM shift forks in good condition.
Moto Gears Shift Forks are preferred but not mandatory
HIGHLY RECOMMEDED TO READ DRI TECH INSTRUCTION INFORMATION SHEET
BEFORE ASSEMBLY

PART NO./PRICING (sold individually or complete gear set)
MODELS: 1985-86 HON ATC 250R / 1986-89 Honda TRX 250R TRANSMISSION GEARS

            MG-23421-HA2-000    Gear 2nd M/S (16t)                              Each                $180

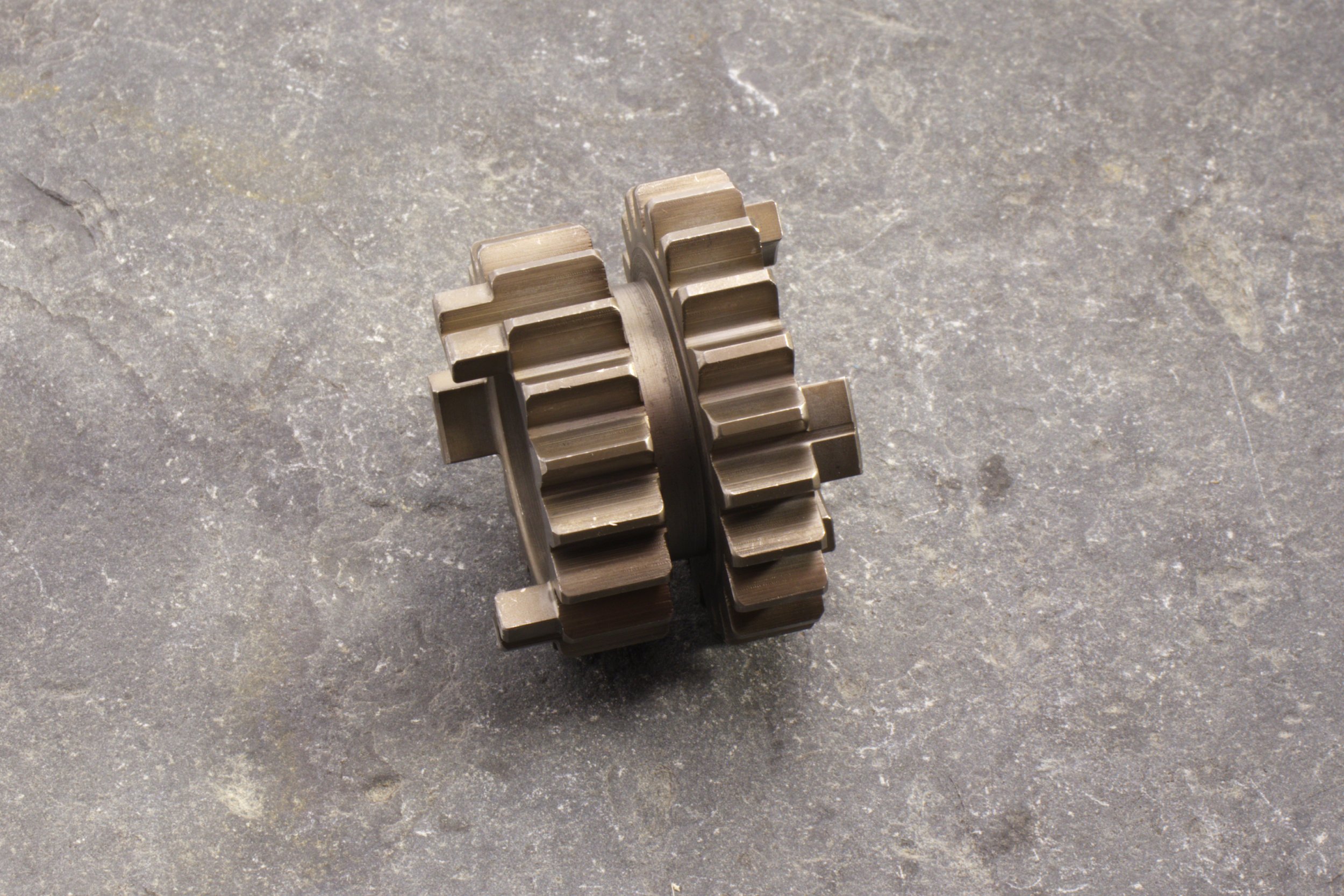

            MG-23441-HA2-000    Gear 3rd /4th M/S (18t/21t)               Each                $299
            MG-23481-HB9-670    Gear 5th M/S (23t)*                             Each                $225
            MG-23501-HB9-305    Gear 6th M/S (25t)* shim/collar included   Each                $249

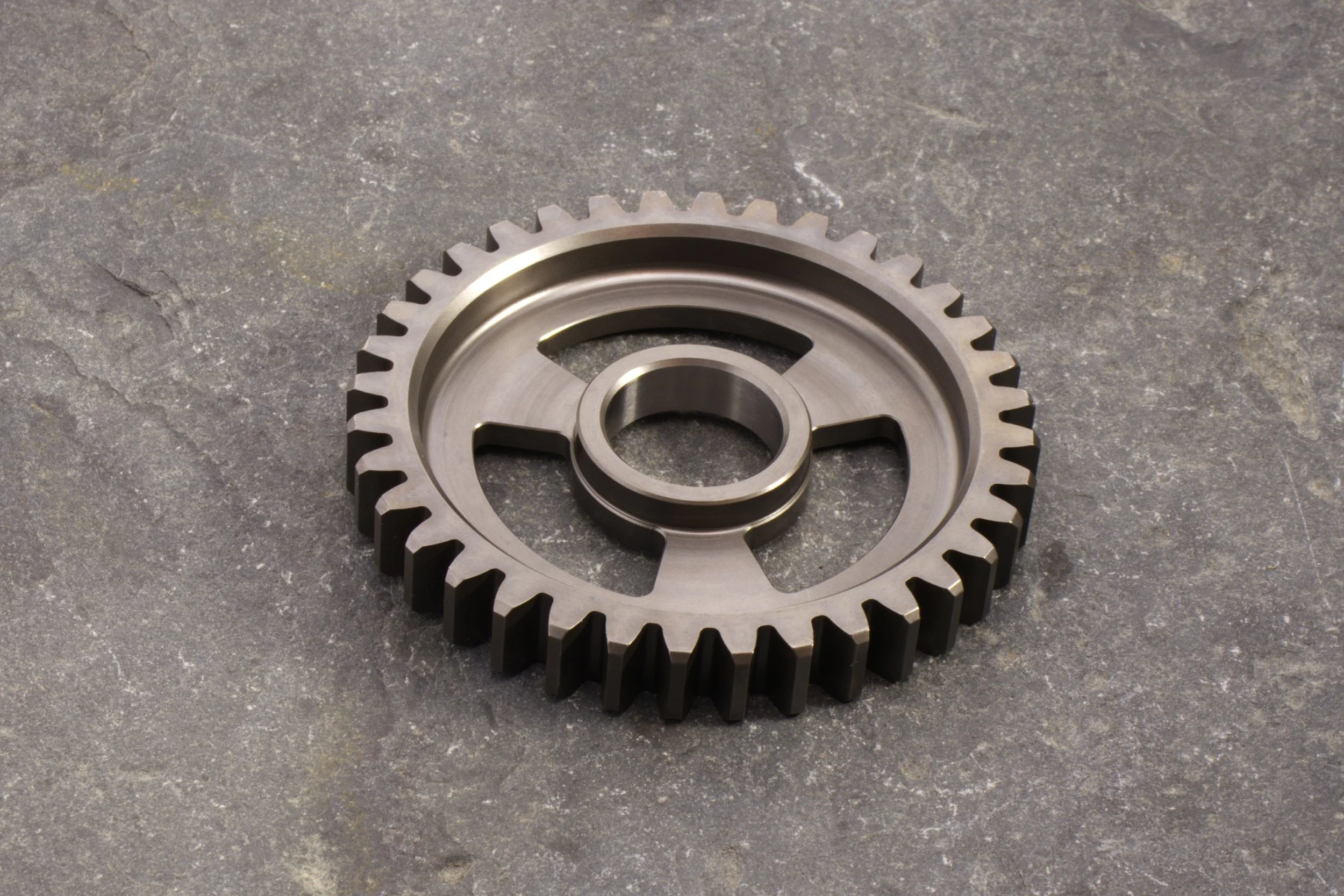

             MG-23411-HA2-000    Gear 1st C/S (36t)                                Each                $225
            MG-23431-HA2-010    Gear 2nd C/S (33t)                              Each                $225

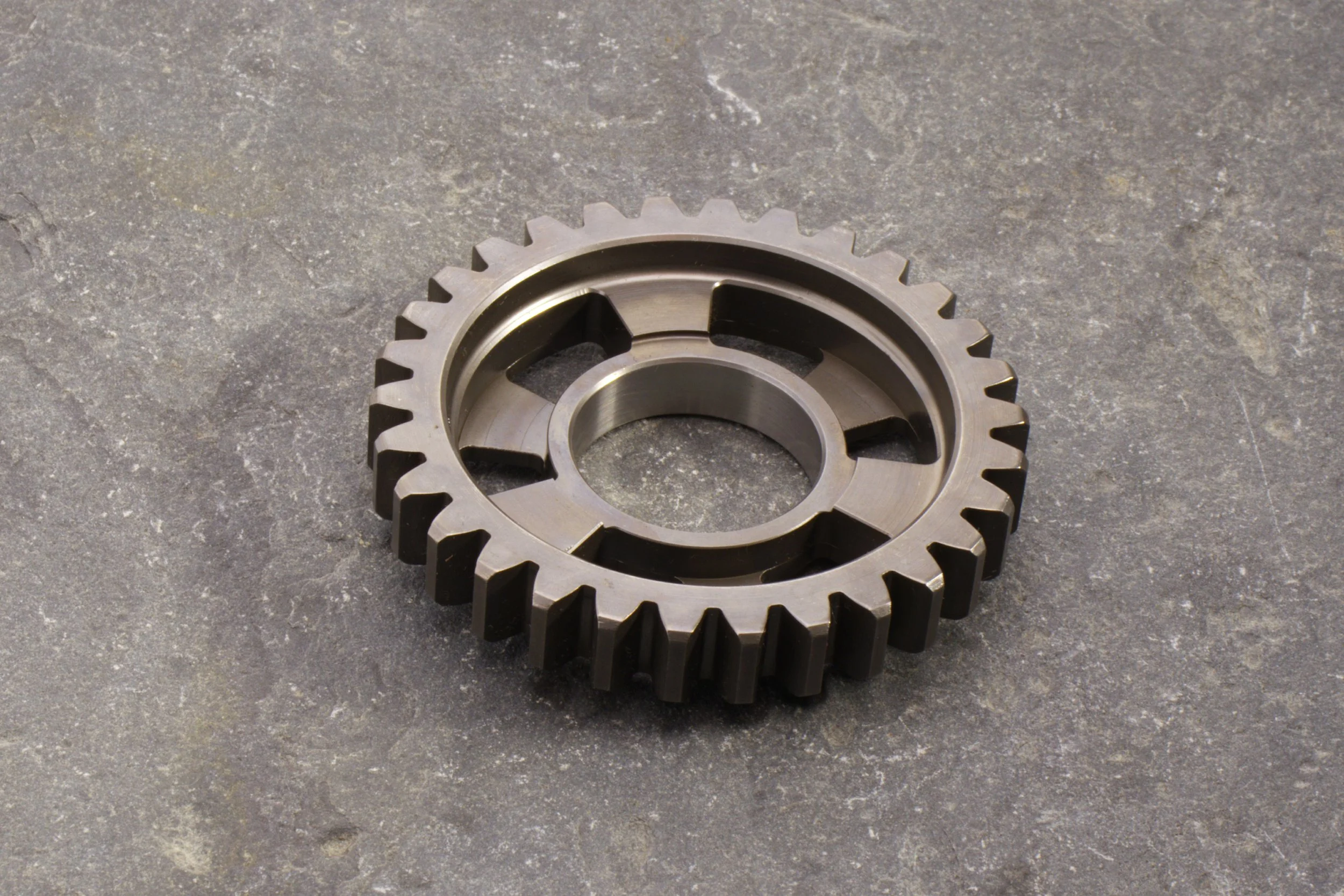

            MG-23451-HA2-000    Gear 3rd C/S (30t)                               Each                $225
            MG-23471-HA2-670    Gear 4th C/S (28t)                                Each                $225

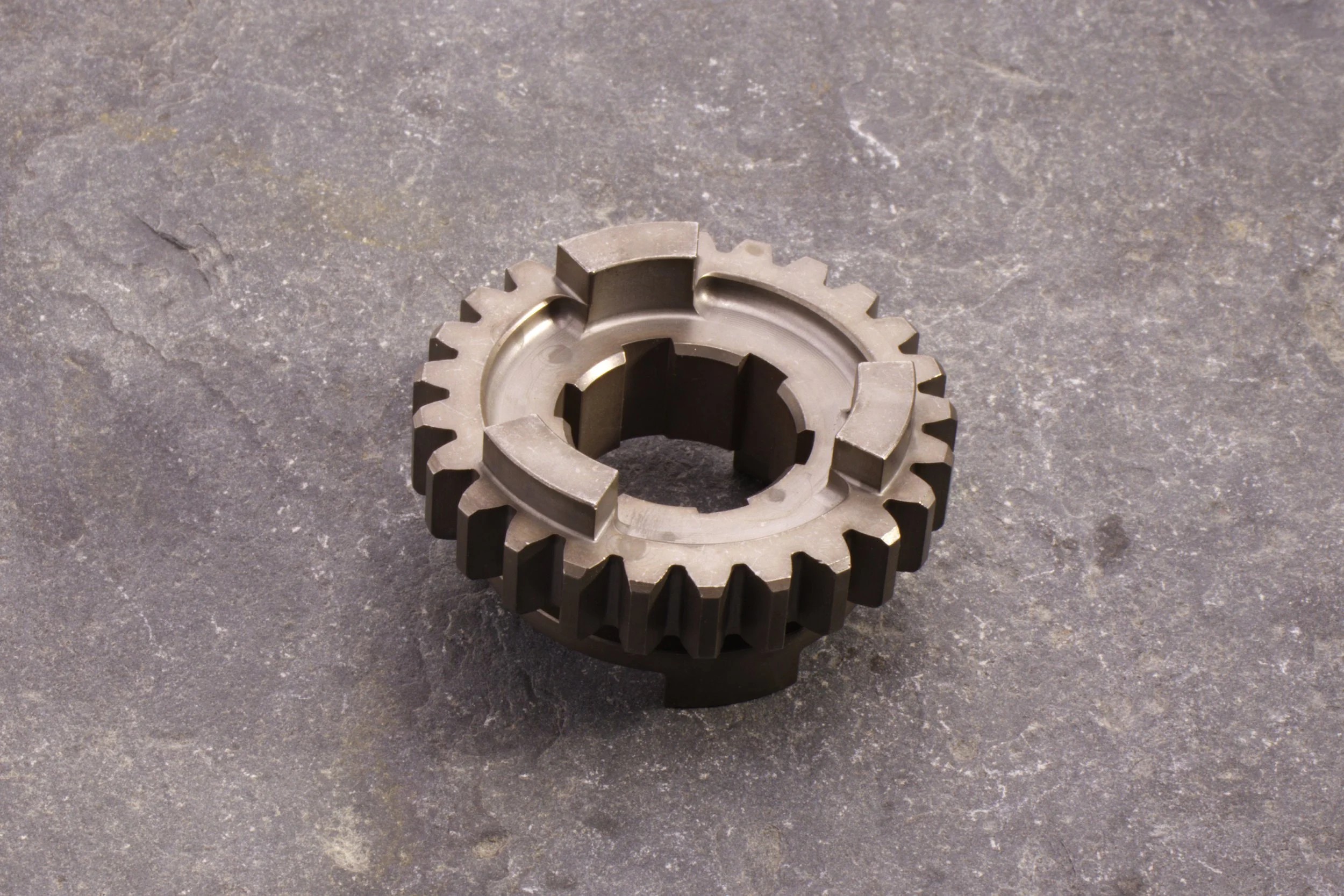

            MG-23491-HB9-670    Gear 5th C/S (25t)*                             Each                $249
            MG-23511-HB9-670    Gear 5th C/S (23t)*                              Each                $249

            MG-24999-25              Trans: Shim/Bushing Kit                      Kit                    TBD

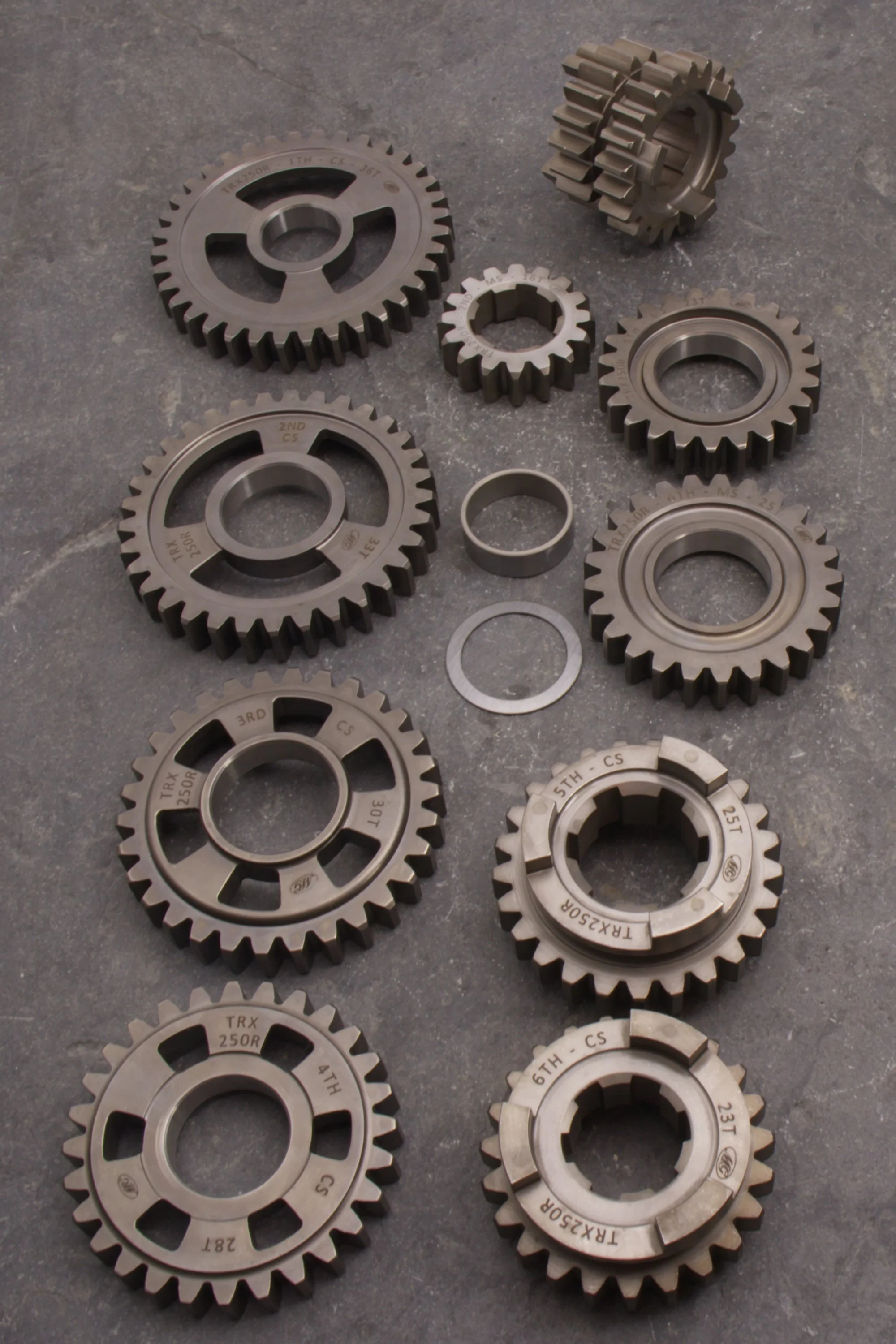

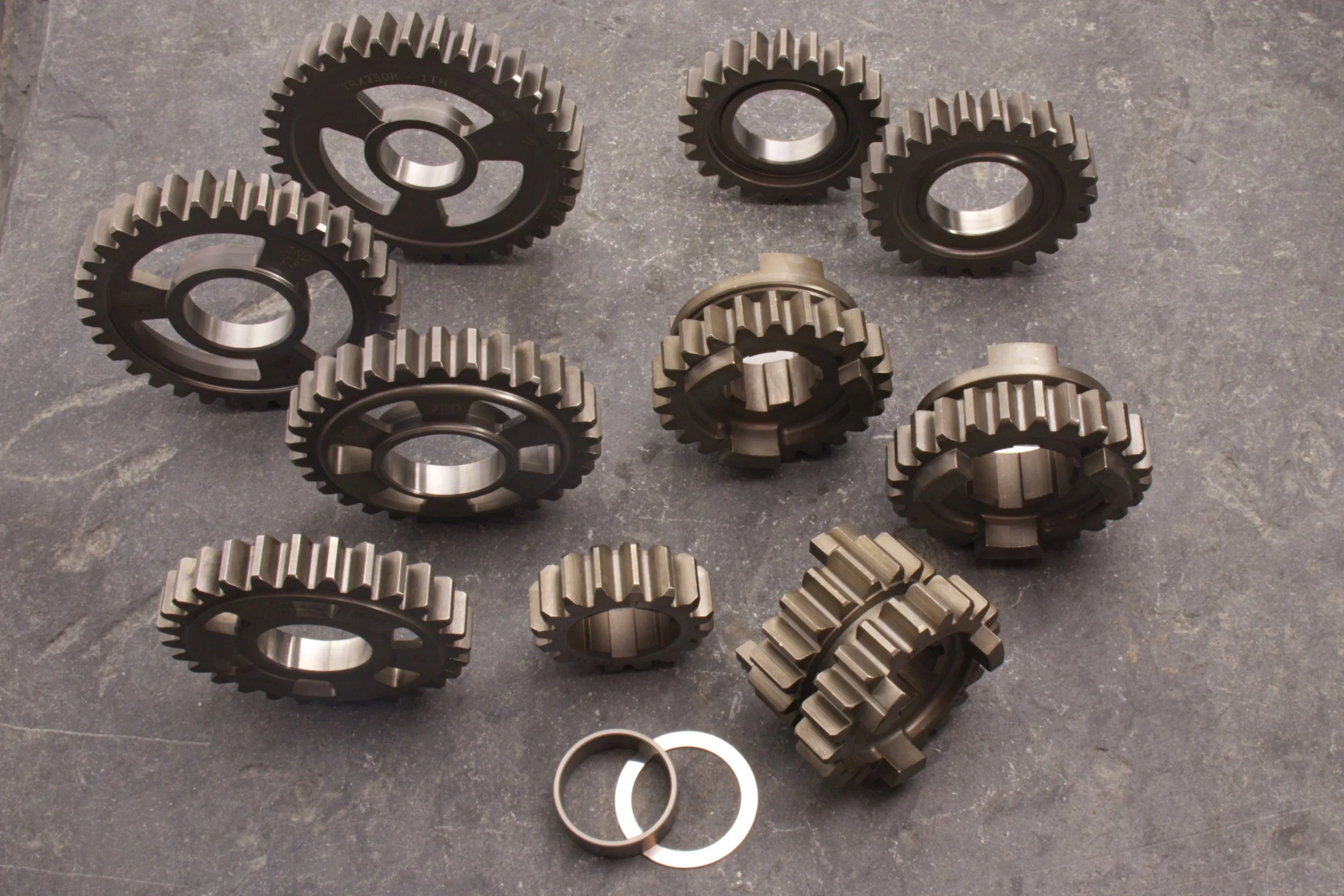

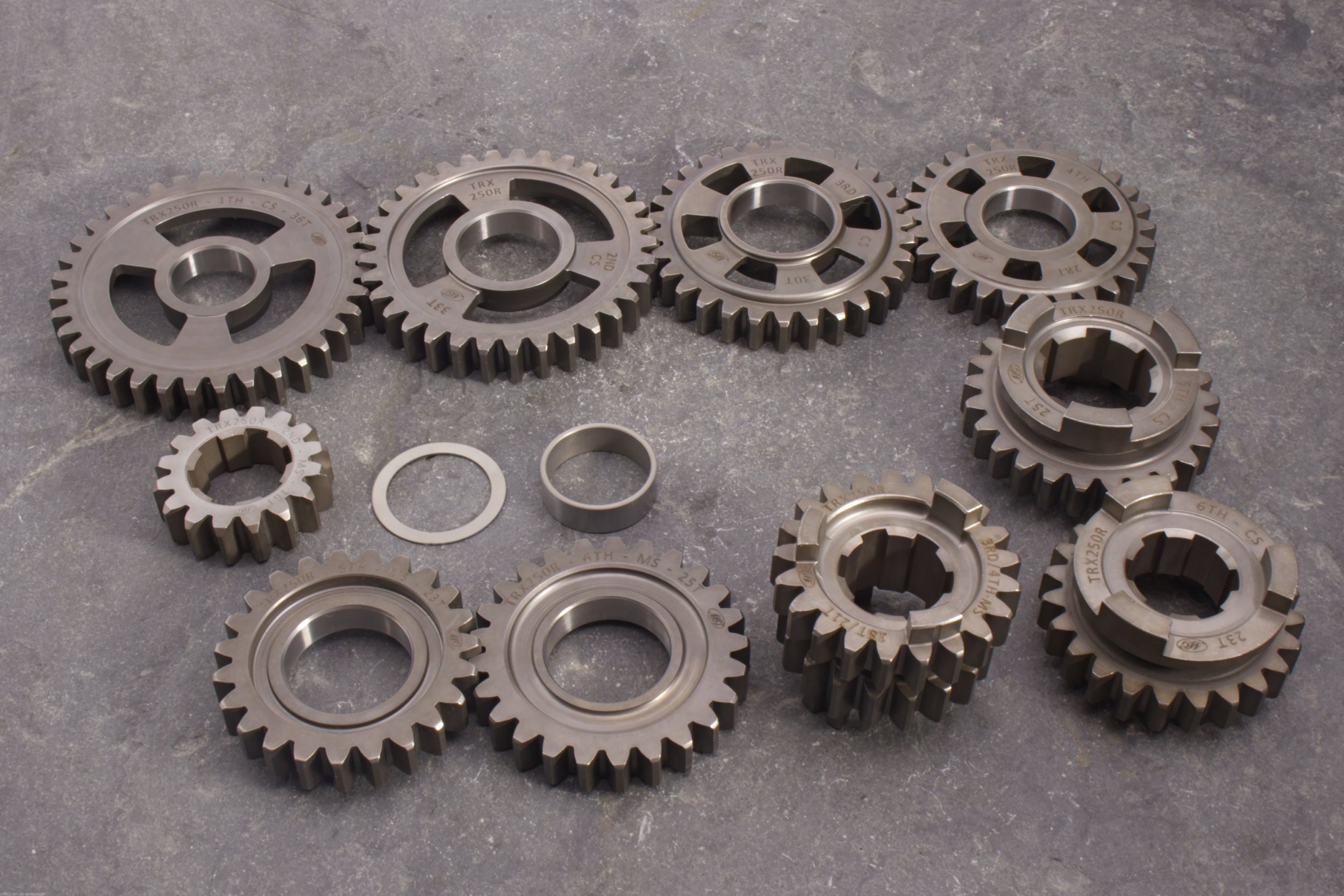

            MG-24500-00              Complete 10pc M/S and C/S           Assy                 $1995
                                                Transmission gear set

·         5th  and 6th M/S and C/S gears are ONLY available in 1987-90 model gear ratios.

·         All gears work on OEM Mainshafts and Countershafts
‍ ‍ * MG scheduled to manufacture shafts in 2027 (date TBA)

·         To use 5th and 6th gears in 1985 ATC 250R or 1986 ATC/TRX 250R .
ALL (4) M/S and C/S 4th and 5th gears must be replaced/converted with ’87-89 model gears.
No machining required

·         5th and 6th ’87-’89 Ration Gear Sets available; 5th gears (1.87) 5th Gears (0.920)
‍ ‍ 1985-86 Gear Ratio 5th gears (1.083) 5th Gears (0.884)

·         MG Work with OEM shift in good working condition.
‍ ‍ * MG Shift forks schedule to manufacture (late 2026)

CONTACT DR WITH QUESTIONS #619-258-6306

ADDITIONAL ASSEMBLY NOTES:
       -     Gears must be installed by a trained professional

-          MG transmission gears MUST be installed with OEM or MotoGears transmission gears, transmission bearings, crankcases etc. in good working condition.
It is IMPERATIVE that the matting gear, and shaft are in good to excellent condition

-          Shift drum, shift fork shafts etc.  MUST be in good working order- free from any wear and tear

-          Call DR for TECH support #619-258-6306

Duncan Racing International, Inc is the authorized North American supplier for MotoGears

Off Road Use only
‍ ‍
